2021-2023
Cumbayá, Ecuador
Diseño Arquitectónico, Diseño Bioclimático, Construcción
Casa Jardin
2021-2023
Cumbayá, Ecuador
Architectural Design, Bioclimatic Design, Construction
Casa Jardin
Esta vivienda de estándar pasivo se integra con delicadeza en un terreno arbolado sin derribar ningún árbol: sus volúmenes fluyen entre los espacios vacíos, aprovechando la topografía y la sombra existente para reducir la huella ambiental. La implantación orgánica, con formas que evitan líneas rígidas, genera patios internos que facilitan la ventilación cruzada y la entrada de luz difusa. Las fachadas ventiladas, compuestas por una cámara de aire tras el revestimiento de madera quemada y carrizo, actúan como barrera térmica, manteniendo temperaturas interiores estables tanto en verano como en invierno.
El proyecto apuesta por la autosuficiencia hídrica y energética: un sistema de captación de agua lluvia, canalizado hacia tanques subterráneos, abastece todos los servicios, mientras una red de filtros biológicos (zanjas de infiltración y humedales artificiales) depura las aguas grises y negras sin químicos. La cubierta se equipa con paneles fotovoltaicos integrados que cubren la demanda eléctrica, y la ausencia total de plásticos —desde el encofrado hasta los acabados— refuerza el compromiso sostenible.
Para cumplir con la filosofía ecológica se emplearon materiales de cercanía y bajo impacto: muros de bahareque y rellenos de tierra estabilizada, estructuras ligeras de bambú y pino laminado local, y enlucidos de cal y cuarzo que regulan la humedad interior. La mayor parte del presupuesto se destinó a mano de obra local, garantizando oficios tradicionales de alta calidad y dinamizando la economía vecinal. Cada detalle refleja un equilibrio entre funcionalidad, durabilidad y responsabilidad con el entorno.

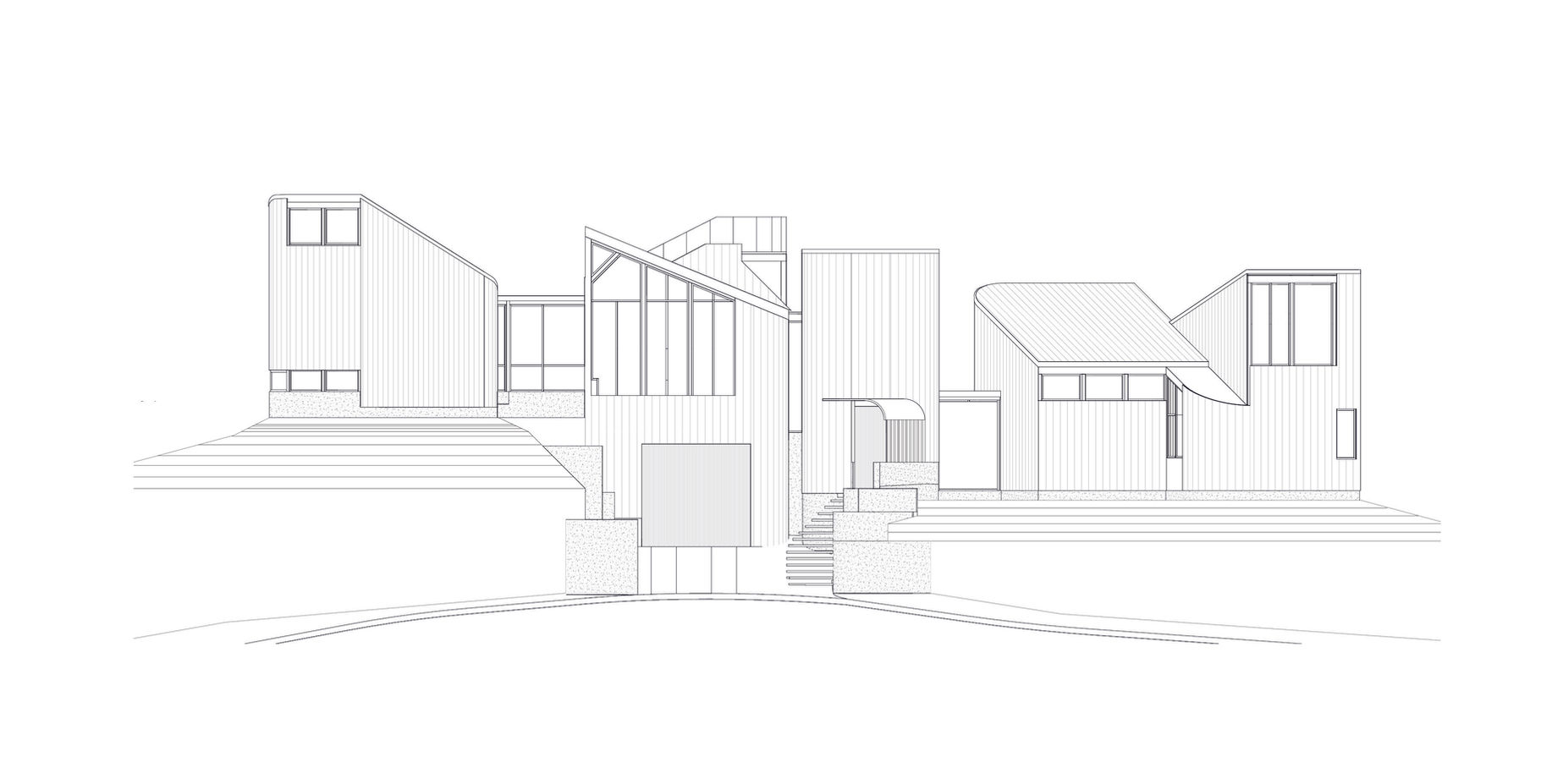

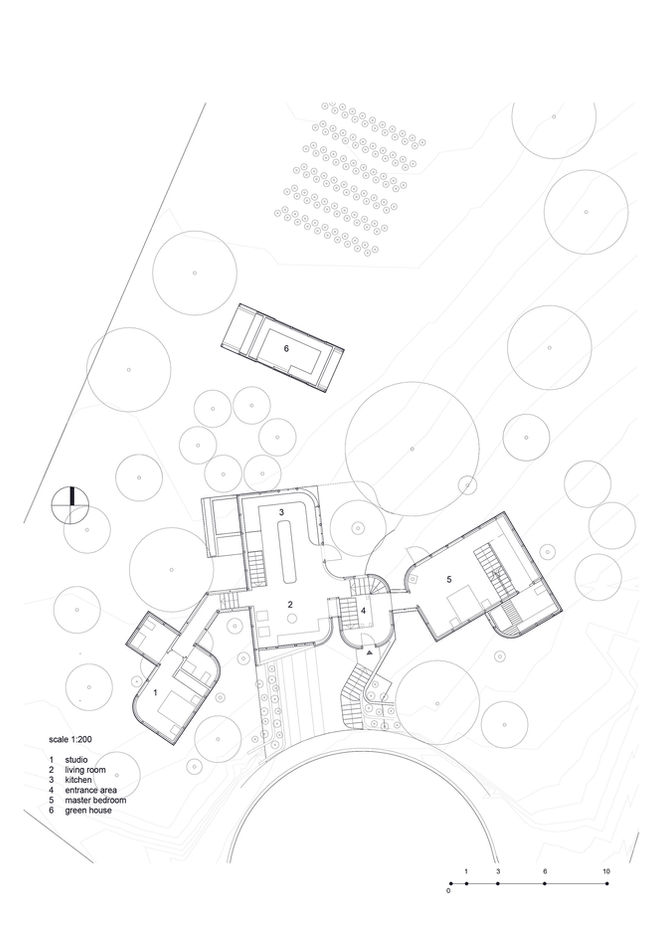

This passive-house standard dwelling nestles gently into a wooded site without felling a single tree: its volumes weave through natural clearings, leveraging existing shade and contours to minimize environmental impact. The organic footprint, free of rigid orthogonal boundaries, creates inward-facing courtyards that promote cross-ventilation and soft daylighting. Ventilated façades—featuring an air cavity behind burnt-wood cladding and carrizo screening—serve as a thermal buffer, keeping interior temperatures stable year-round.
The design prioritizes water and energy self-sufficiency: a rainwater-harvesting network channels precipitation into underground cisterns for all domestic uses, while a series of biological treatment systems (infiltration trenches and constructed wetlands) purify grey and black water naturally. Integrated photovoltaic panels on the roof meet the building’s electricity needs, and a strict zero-plastics policy—from formwork to finishes—underscores its eco-commitment.

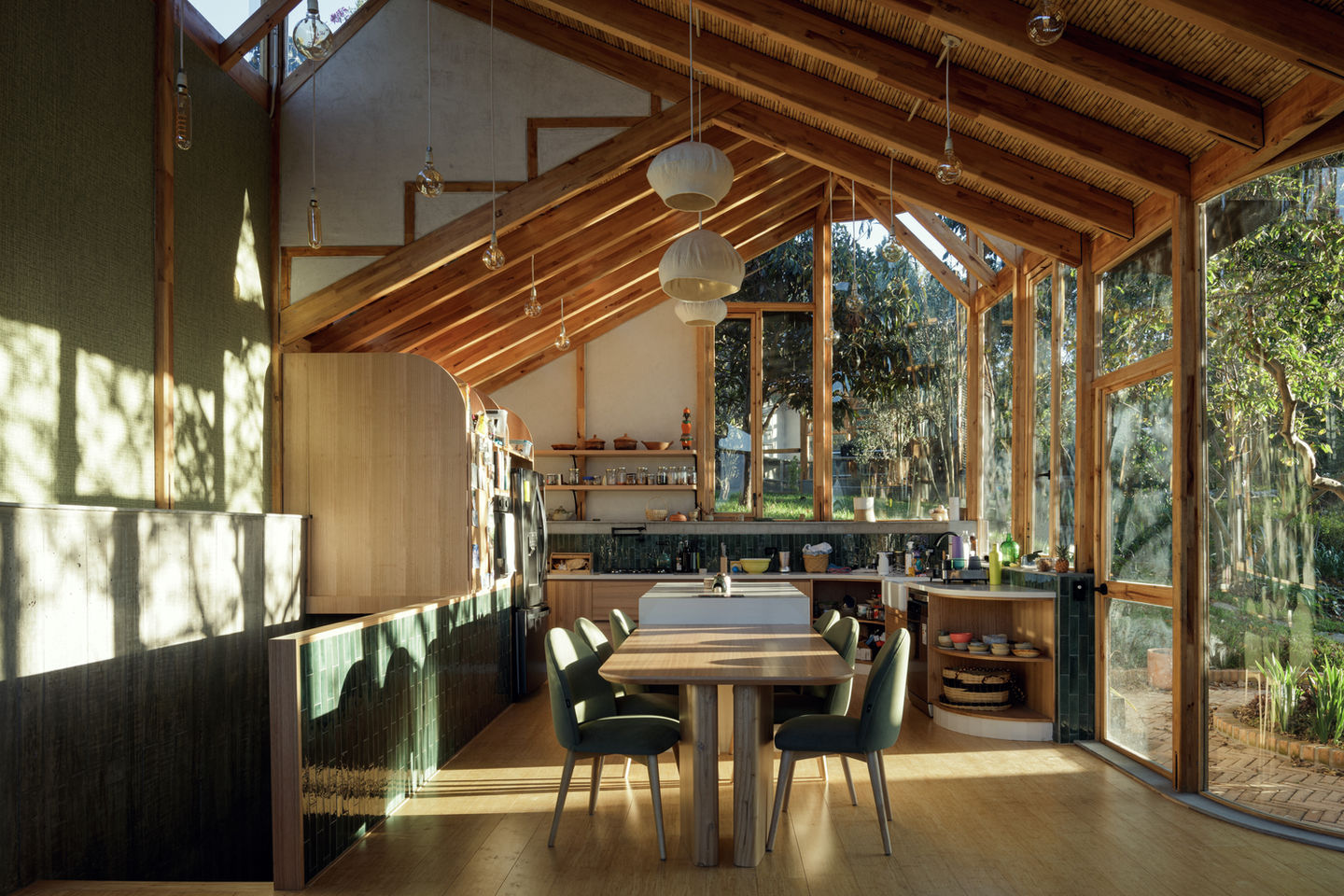

To honor the sustainable vision, only locally sourced, low-impact materials were used: bahareque walls with stabilized earth infill, bamboo and laminated local pine structures, and quartz-and-lime renders that regulate indoor humidity. The bulk of the budget was allocated to skilled local labor, ensuring artisanal craftsmanship and stimulating the neighborhood economy. Every element reflects a harmony of functionality, longevity, and environmental stewardship.
Equipo
Jose Holguin, Miguel Rueda, Holbeein Velasquez
Maria Paz Enriquez, Paula Castillo
Structural Design: Ing. Patricio Cevallos
Plumbing Design: Ing. Xavier Arboleda - AFH
Electrical Design: Ing. Bolivar Ledesma - Microcircuits
Civil Works: Maestro Galo Borja & Team
Earthen Works: Julian Lima & Team
Structure Assembly: Javier Mera, Juan Subia
Structure Fabrication: Madebu
Furniture & Interior Design: Estudio 593
Team
Jose Holguin, Miguel Rueda, Holbeein Velasquez
Maria Paz Enriquez, Paula Castillo
Structural Design: Ing. Patricio Cevallos
Plumbing Design: Ing. Xavier Arboleda - AFH
Electrical Design: Ing. Bolivar Ledesma - Microcircuits
Civil Works: Maestro Galo Borja & Team
Earthen Works: Julian Lima & Team
Structure Assembly: Javier Mera, Juan Subia
Structure Fabrication: Madebu
Furniture & Interior Design: Estudio 593
